ACO Building Drainage
Domestic and Economical Solutions
A channel for every application

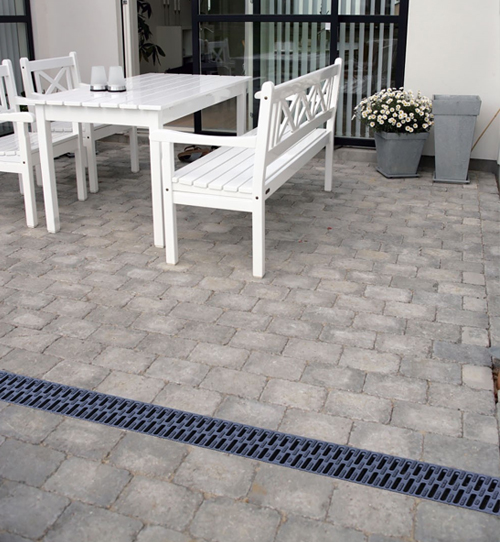

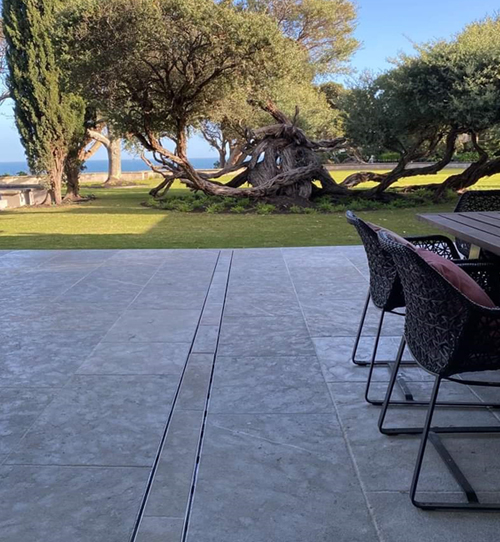

The ACOEuroline drainage systems has been specially created for use in homes and gardens and is designed to withstand the weight of cars. It keeps entrances, pathways, garage forecourts and terraces free of rain and wastewater, thus protecting the building fabric. The optimized channel body and the new locking system increase the channel's durability and safety, making it easier to install.
- Choice of channels made of polymer concrete
- Free cross section
- Variety of design grilles of galvanized steel, cast iron, stainless steel, plastic, powder coated
- The successful ACO V-profile – now also for home and garden applications
- Resistant to light car traffic
- Screwless grating lock
- Modular system and accessories for easy installation
- Modular system and accessories for easy installation
- Smallest height 55mm available with height 97mm and 139mm
Product benefits

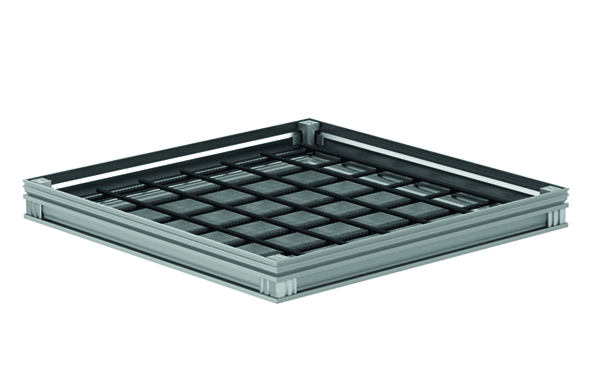

- Type tested and certified according to EN 1253-4, Uniface DEEP according to EN124
- Tested with space for tiles 15 mm (competitors covers tested completely filled with concrete)
- Bolt locked – child safety
- Corrosion resistant
- Small corner parts
- Secure installation – good connection with concrete (profiled frame or anchors)
- Discreet product after installation
- Easy tool for opening and manipulation
- Water-tight and odour-tight
Product information
- Excellent optic aesthetics
- Meets declared load class up to M125
- Corrosion resistant aluminium alloy
- Precision thanks to crimping (mechanical fixing)
- 2+1 sealing – water/odour tight+sand/ dust tight
- Easy opening – prevents blockage
- Easy installation – positioning of the cover in frame
- Tiny tolerances, perfect fit
- Very small corner parts (30×30 mm)
- Brass nut to prevent blockage
- Reinforcement in optimal position

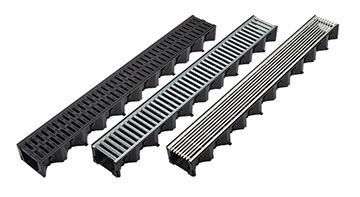

HexaLine is a recyclable polypropylene trench drain system with a range of innovative features, making installation of drainage channels easier then ever. This product is suitable for pedestrian and light vehicle traffic applications. Check out HexaLine Brickslot for a more discreet, slot drainage solution for the HexaLine channel.

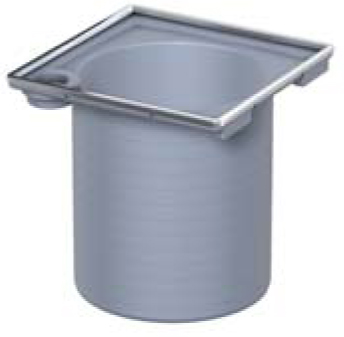

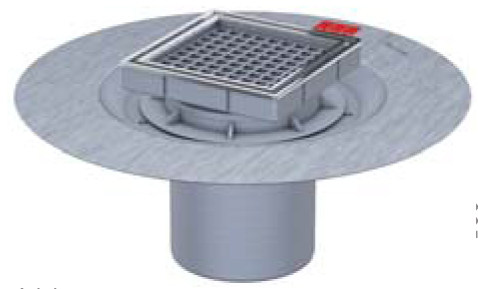

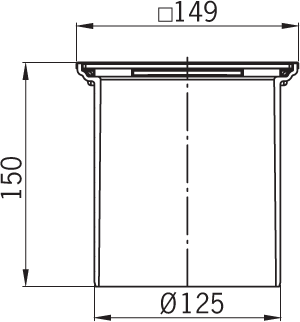

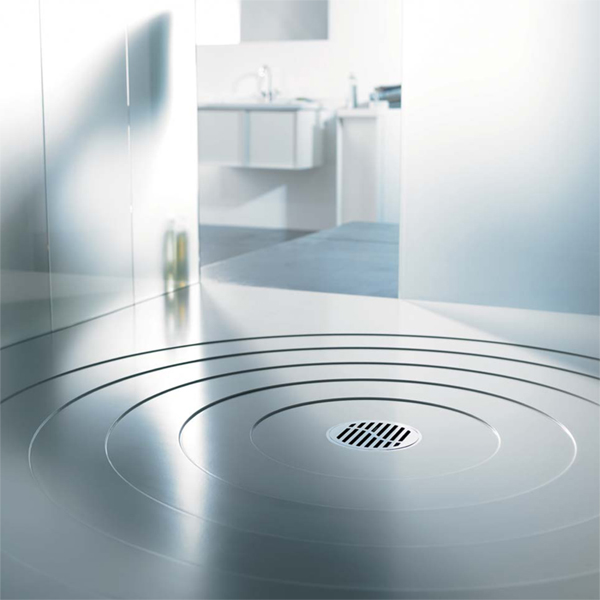

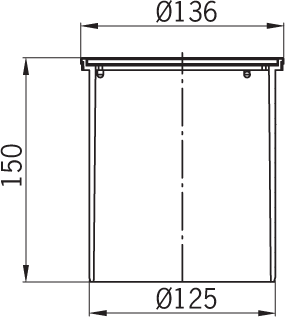

There are Easyflow drainage products available for most flooring and installation details – solid concrete floors, timber joisted floors, ceramic tiles and resin construction. For tanked wetroom applications, a selection of gully tops is available to ensure a 100% watertight installation. The wide choice of gratings provides elegant options to suit every taste.
The electro-polished austenitic stainless steel gratings, ABS and polypropylene top sections and gully bodies together provide a tough, corrosion resistant product guaranteed to provide a long, trouble-free installation. Additionally, all components are 100% recyclable contributing to a sustainable environment.
All ACO Easyflow floor gullies are supplied complete with a removable foul air trap for quick and easy maintenance. A water seal of 50mm conforms to BS EN 1253 and eliminates potential odours that can result from pressure fluctuations in downstream drainage connections. Additionally, effects of evaporation are significantly reduced following long periods without use.
